Hot-well

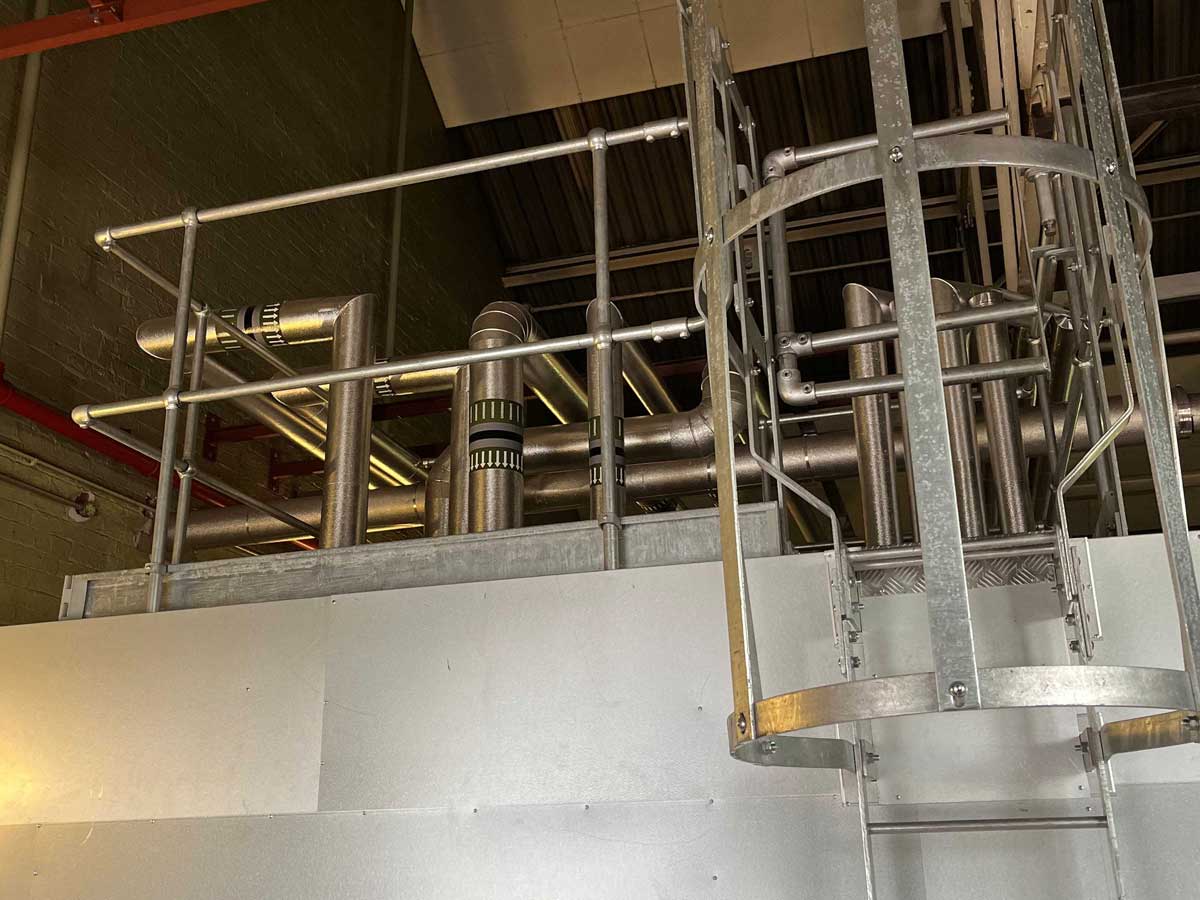

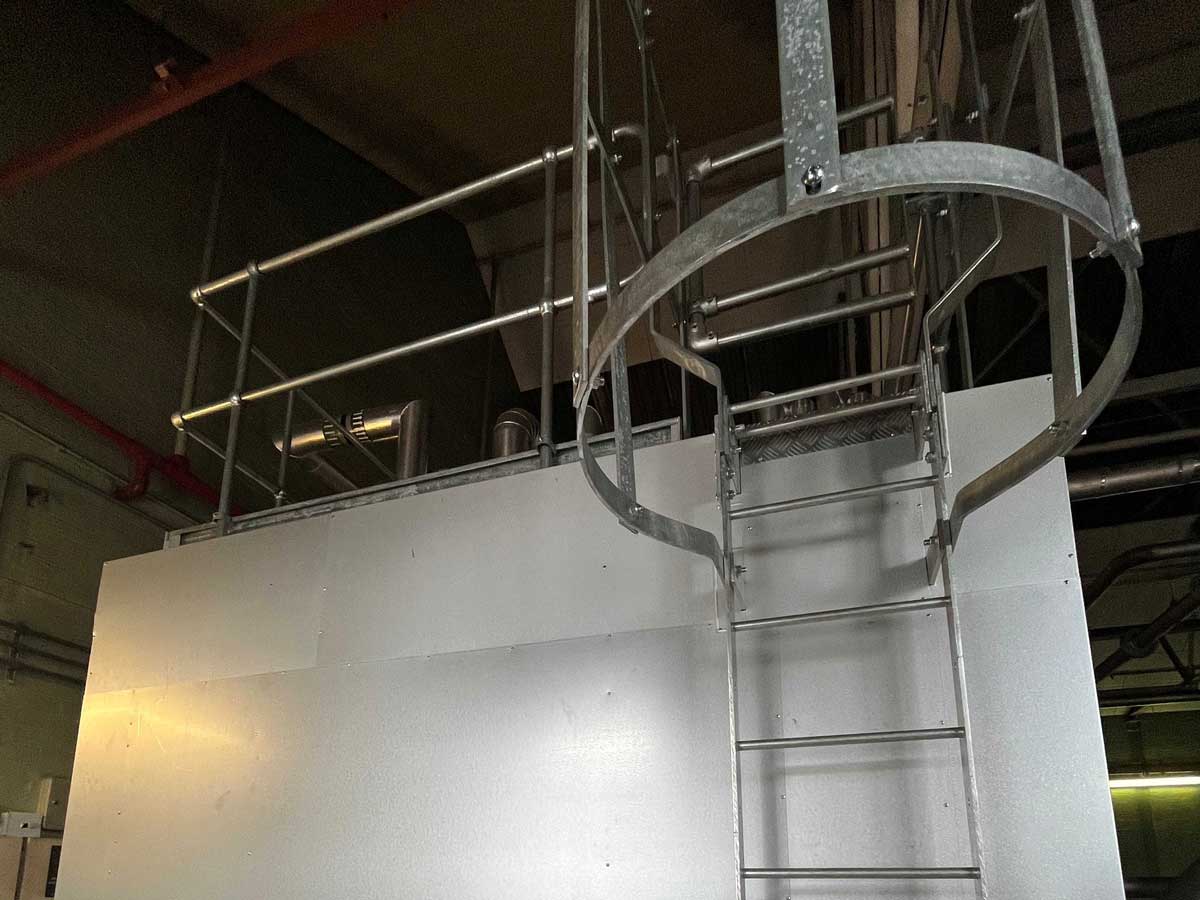

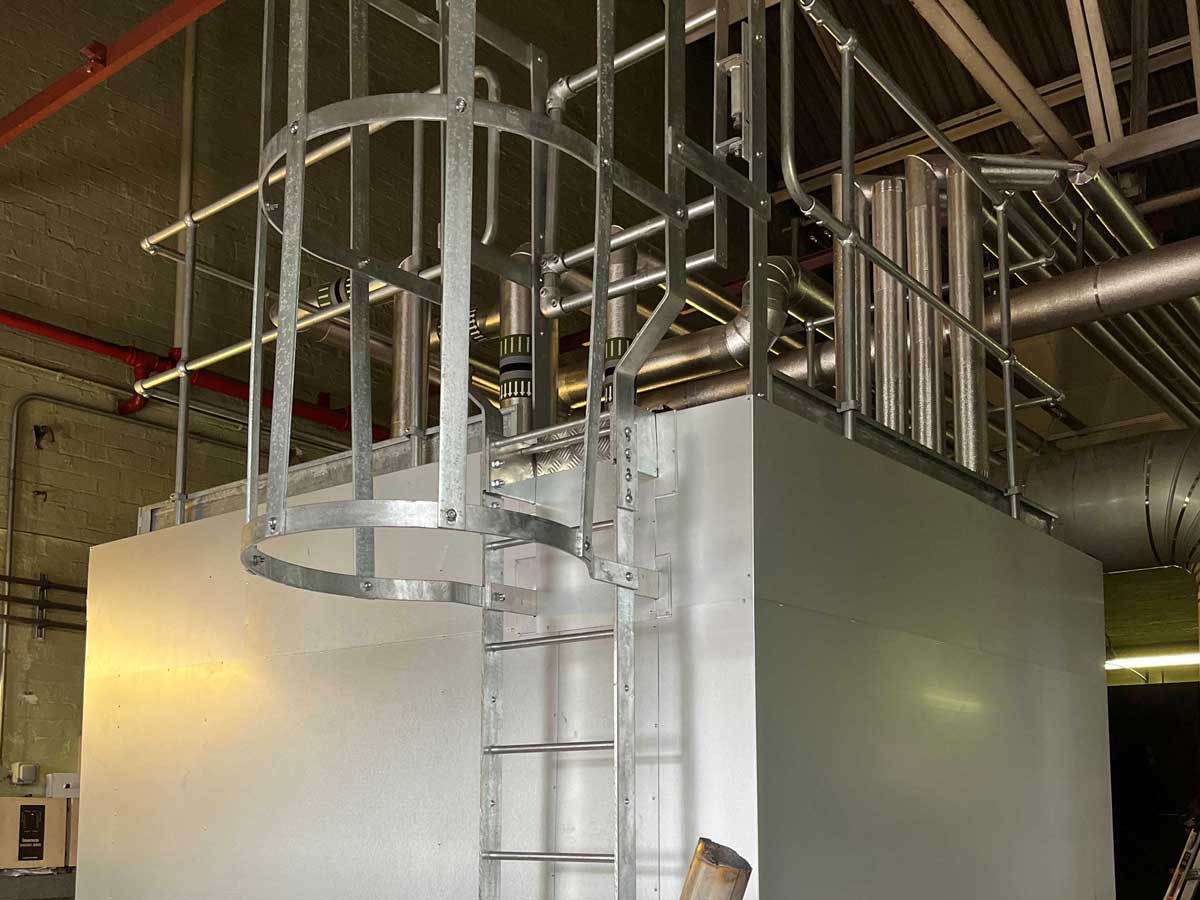

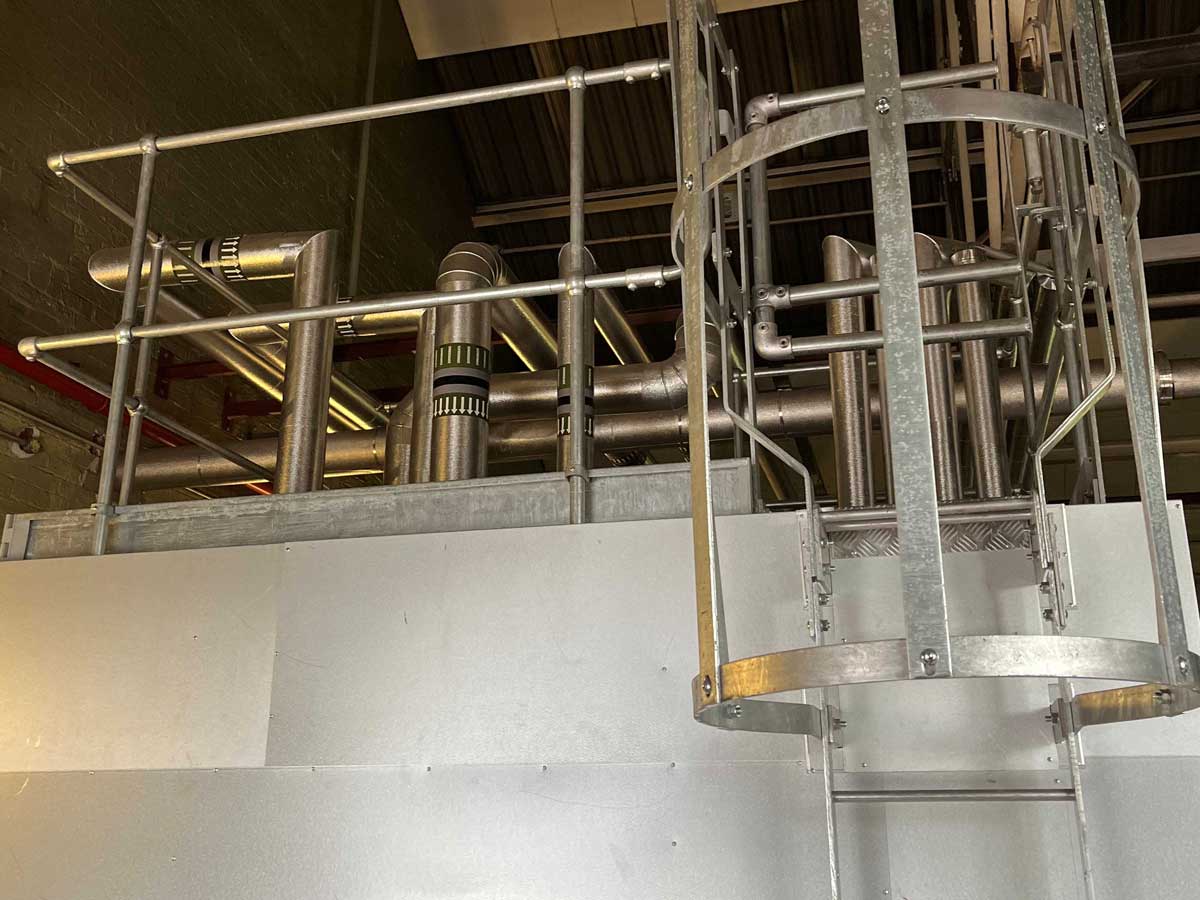

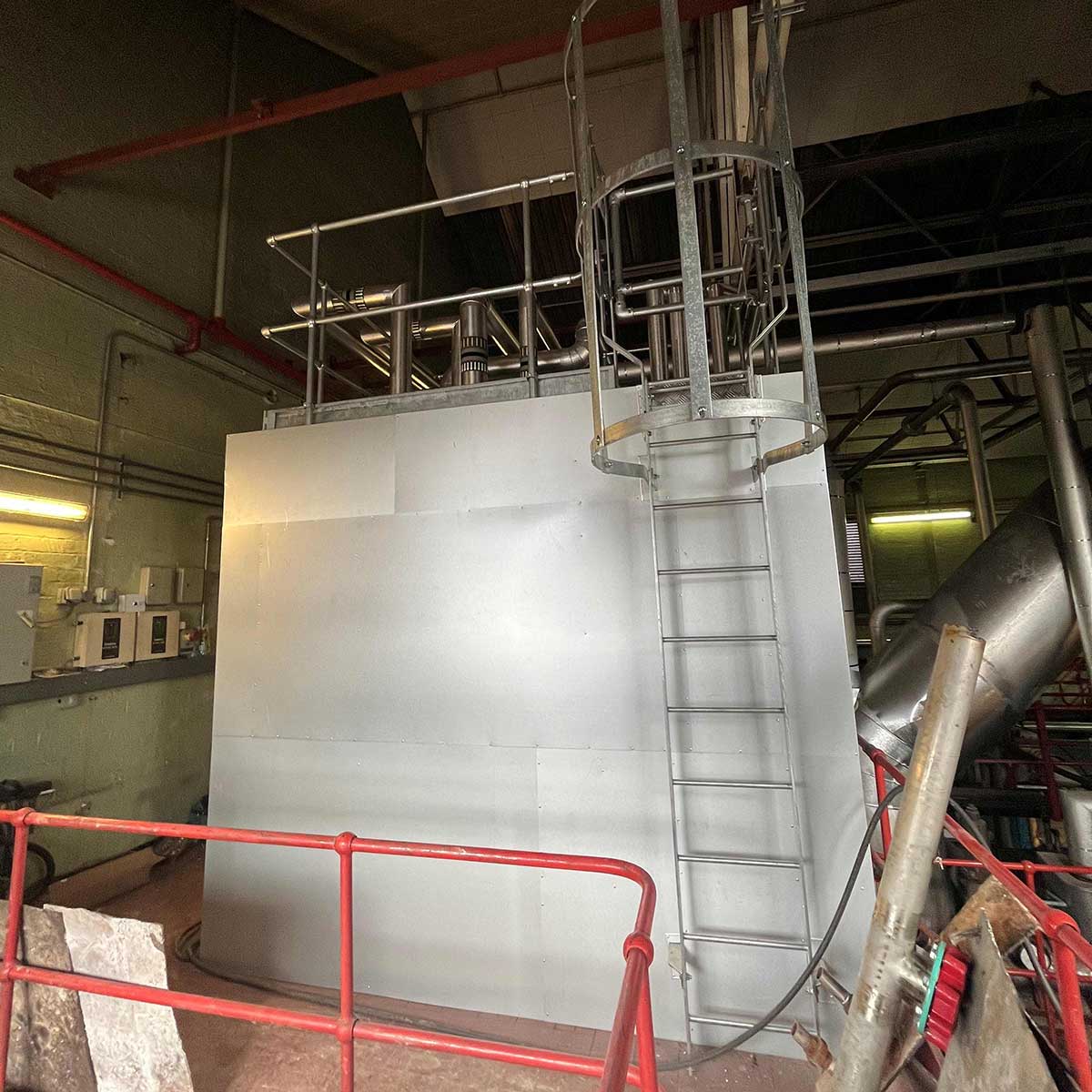

Customer required replacement hot-well due to existing unit leaking, the hot-well was located high up on a mezzanine floor with no easy access for removal and installation. The dowtime to complete the works was 1 week. Thermtech designed a modular Hot-well to allow for easy lift and shift in a tight area and final build and weld of unit in location.

The existing unit was removed and new one installed in the allocated time with no loss of production for the customer

Project Details
  • Industry: Food production
  • Design Pressure: 0.5 Bar g
  • Design Temperature: 120 Deg C
  • Nominal Capacity: 10,000 L
  • Design Code: SEP
  • Construction Material 304 Stainless Steel. Insulated with 100mm Thick Mineral Wool & 1mm Aluminium cladding. Designed as a modular unit - Assembled and welded on site. fitted with Level Switch , steam sparge, control valves level switches and tempurature sensors
